New listening seat ( absorbent )and i added large absorption panels in the corners just off the wall .
The room was too lively, plus i repositioned the speakers.
And i added a small berber carpet from maroc in front of the speakers

new seat resized .jpg

Spanish guitar music streaming via meitner DAC ;



andromedaaudio

VIP/Donor
Jan 23, 2011
8,350
2,730
1,400
Amsterdam holland

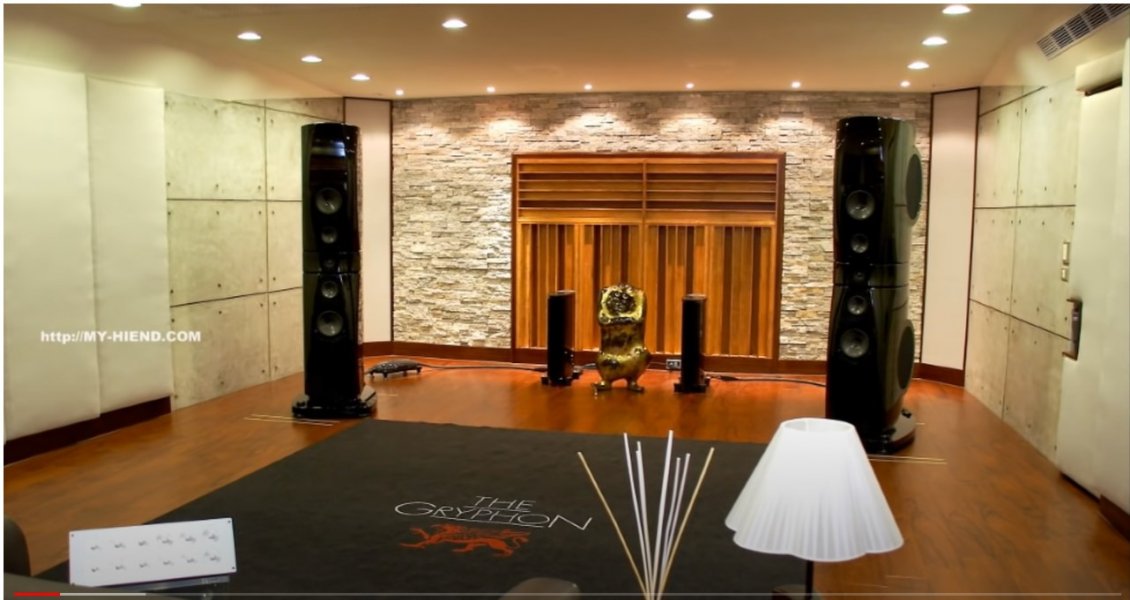

A system / room i always looked up to was this system , it played koyaanisqatsi / prophecies on you tube.
(I dont think it was played through the speakers )

Rockport .jpg

I thought id make a vid playing the same music through my system .

If i would change / upgrade it probably would be Gryphon Apex or Robert Koda



And the best Rock and Roll band of all times AC DC Live wire with Bon scott .


Last edited:
  • Like
Reactions: rando

andromedaaudio

VIP/Donor
Jan 23, 2011
8,350
2,730
1,400
Amsterdam holland

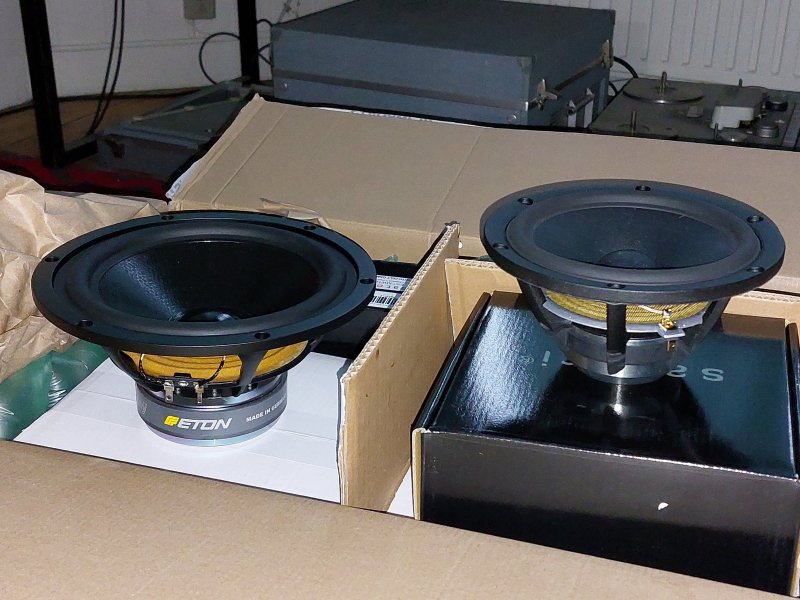

20230328_185231.jpg All the parts have arrived for the smaller cheaper model.
Eton 8 inch for the bass and paper for the mids as usual.
But different more sophisticated drive systems
Which will result in a small affordable 3 way , probably a closed system/ easy to place
The papermid membrane is made of egyptian papyrus according to the manufacturer , whether it actually sounds better has to be heard

Last edited:

andromedaaudio

VIP/Donor
Jan 23, 2011
8,350
2,730
1,400
Amsterdam holland

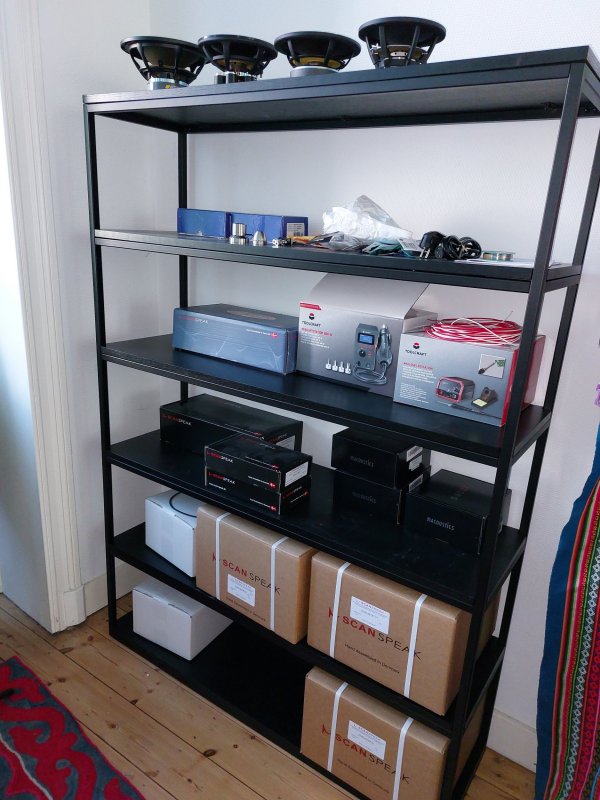

Next up testing of midranges.
I ve got almost a small factory now . :)
Im testing one nomex kevlar membrane and 3 paper mids varying from 160 to 800 euro a piece.
This is the fun part .
I have listened to an enourmous amount of drivers / speakersystems over the past 2 years and although carbon fiber / hard membranes sound very articulate and clean , i love slightly forgiving /absorbing paper ( The British sound ??)
I ll also test membranes which have a foam surround / flatter response and dont have the typical 2-3 db dip due to the rubber surround resonance in the 1-2 khz area
Also i like to hear if the elliptical voice coil results in sonic benefits / better transient response or not.
It should for the price .
Plus i m gonna experiment with larger membranes and a lower X over point ranging from a 6 inch currently to 6,5 , 7 and 8 inch .
Midranges are the heart of a speaker
20230404_114158.jpg 20230404_114039.jpg 20230404_113959.jpg

Last edited:

andromedaaudio

VIP/Donor
Jan 23, 2011
8,350
2,730
1,400
Amsterdam holland
Arrived from the machine shop

ll be using a new ultra hard compositie material
Best bang for buck speakers i have ever designed .
2 new models.
Wooden loudspeaker lovers need not Apply.


Attachments

  • 20230530_162626.jpg
    459.8 KB · Views: 14
  • 20230530_162620.jpg
    544 KB · Views: 14
  • 20230530_162615.jpg
    535.3 KB · Views: 14
  • 20230530_163449.jpg
    430.8 KB · Views: 14

andromedaaudio

VIP/Donor
Jan 23, 2011
8,350
2,730
1,400
Amsterdam holland

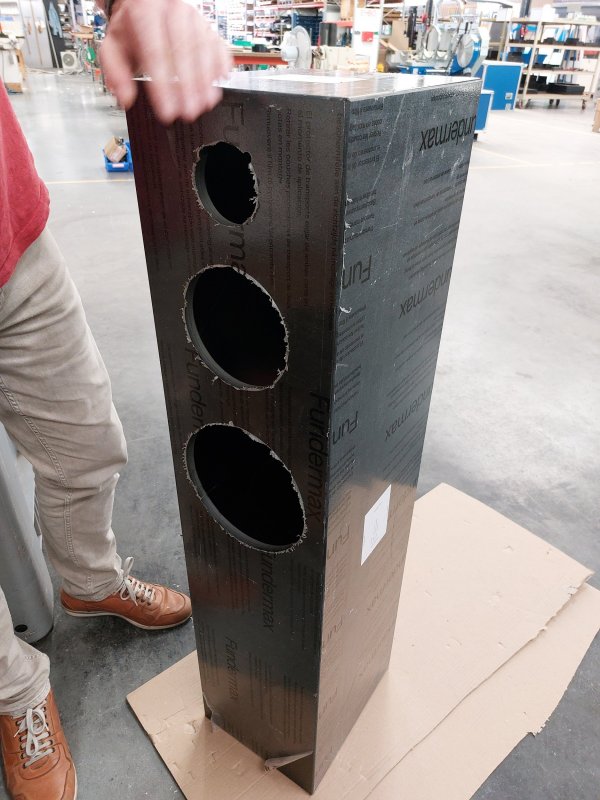

New basic ( low cost) design , 3 way closed system in miter ( CNC machined )
Unfinshed , it will get high gloss piano laquer
Made of HPL which is layers of Kraft paper drenched in phenolic resin then heated / pressurized.
Paper damps resonances extremely well


1695112853539.jpeg 1695113021555.jpeg

Last edited:

andromedaaudio

VIP/Donor
Jan 23, 2011
8,350
2,730
1,400
Amsterdam holland
My new design playing music
Testing with a first order series x over on 20 watt solid state
No problemo.
3 way closed system for small / medium sized rooms.
This has the natural HPL finish not high gloss spray painted .
Top notch units from Eton and scanspeak .
This model is much cheaper to produce due to reduced wall thickness 40 mm to 13 mm.
No machined bass reflex pipe , no expensive caps like duelund / mundorf , entry level finite element cerapuc feet.

Angled internal walls to diffuse the back wave


Attachments

  • 20231012_115454.jpg
    352 KB · Views: 17
  • 20231012_115437.jpg
    469.9 KB · Views: 17
Last edited:
  • Like
Reactions: Audiohertz2

andromedaaudio

VIP/Donor
Jan 23, 2011
8,350
2,730
1,400
Amsterdam holland
The dirty work .
+ - 2 ,5 db over the 300 hz - 8 khz range 1 / 6 octave smoothfactor
You can never make filter adjustments by ear and achieve these FR results .
Not even golden ears.

Ps around 35 hz - 3db is what i m getting max out of these.


Attachments

  • 20231013_205427.jpg
    582.6 KB · Views: 19
  • 20231013_205406.jpg
    1.1 MB · Views: 19
Last edited:
  • Like
Reactions: Audiohertz2

matthias

Well-Known Member
Mar 14, 2019
1,226
545
213
Germany
@andromedaaudio
Do you have any plans to release a two-way speaker with series X over?
Thx

Matt


andromedaaudio

VIP/Donor
Jan 23, 2011
8,350
2,730
1,400
Amsterdam holland
@andromedaaudio
Do you have any plans to release a two-way speaker with series X over?
Thx

Matt

Hi
Not really at the moment
may be in the future
I first wanna see how this model develops .
This seems like the most economical viable solution to me .
You get quit a lot of bass impact / extension with this design but with a easy to place /small footprint.

Ps why would it have to be a 2 way ??

Last edited:

Audiohertz2

Well-Known Member
Jun 8, 2023
485
277
65
A system / room i always looked up to was this system , it played koyaanisqatsi / prophecies on you tube.
(I dont think it was played through the speakers )

View attachment 103647

I thought id make a vid playing the same music through my system .

If i would change / upgrade it probably would be Gryphon Apex or Robert Koda



And the best Rock and Roll band of all times AC DC Live wire with Bon scott .


What are the speakers


Audiohertz2

Well-Known Member
Jun 8, 2023
485
277
65
The dirty work .
+ - 2 ,5 db over the 300 hz - 8 khz range 1 / 6 octave smoothfactor
You can never make filter adjustments by ear and achieve these FR results .
Not even golden ears.

Ps around 35 hz - 3db is what i m getting max out of these.

Can you advise on what measuring system you are currently using ..?
