DaVa FC-A1 a field coil contender

Jan 18, 2012
1,565
1,136
570
Drobak Norway
Hi M
good news indeed!
if 1:28 is enough depends on the rest f the chain, but you´ll find out soon enough
have experimented a lot with dc filtering on the supply.......I´ll fill you in on demand....
best
Leif


Solypsa

Well-Known Member
Jun 7, 2017
1,120
744
220
Seattle
www.solypsa.com
Will the Primary Control FCL be there too?

Jan 18, 2012
1,565
1,136
570
Drobak Norway
another polypropylen MKT1840 10µF shunt cap over the BG super E.....even more harmonics and tone......

Art Pepper Meets the rhythm section never sounded better and pretty close to my SM copy when played on A80NextGen


Kcin

VIP/Donor
Mar 27, 2016
438
424
215
Canada

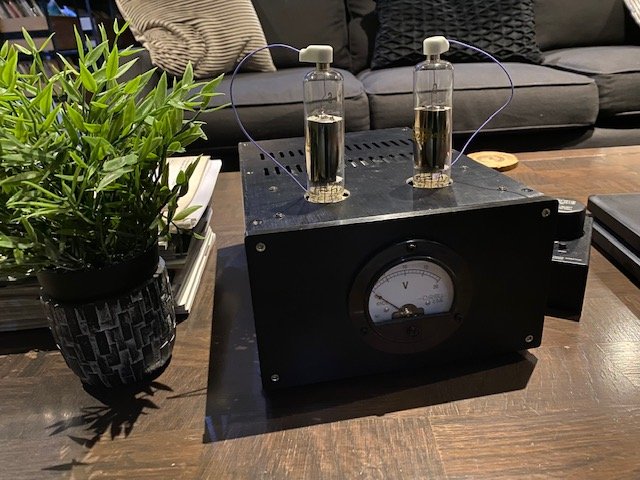

My damper diode PS build is just about done. I bored the hole today for the voltmeter. Adjustment rheostat is at the rear- I did not want to clutter the front.

A few more mechanical fasteners inside - but the design is done. Only now to wait for the DaVa cartridge, promised in September.

What range of voltage is everyone using? Darius says 9-12v max I can get up to about 140 mA into 93ohms at 12v


Here's hoping it was worth the work!


Audiophile Bill

Well-Known Member
Mar 23, 2015
3,948
3,341
515
UK
View attachment 93013







My damper diode PS build is just about done. I bored the hole today for the voltmeter. Adjustment rheostat is at the rear- I did not want to clutter the front.

A few more mechanical fasteners inside - but the design is done. Only now to wait for the DaVa cartridge, promised in September.

What range of voltage is everyone using? Darius says 9-12v max I can get up to about 140 mA into 93ohms at 12v


Here's hoping it was worth the work!

Excellent job. You’ll have enough wattage there. If you can be bothered, do consider a 2nd stage between this and your arm board - just one cap needed or a cap stack (see some of Leif’s suggestions).

  • Like
Reactions: Kcin
Jan 18, 2012
1,565
1,136
570
Drobak Norway
reg dc on DaVa it´s all about heat disappation
I use wood headshells now and had graphite
they both don´t lead heat away at all so I´ve stuck to about 10,5-11vdc where I can still hold the cartridge body without any pain
if not exceeding about 45c temp, I guess you could go higher in a metal headshell

  • Like
Reactions: Kcin

Mike Lavigne

Member Sponsor & WBF Founding Member
Apr 25, 2010
10,539
6,386
1,460
reg dc on DaVa it´s all about heat disappation
I use wood headshells now and had graphite
they both don´t lead heat away at all so I´ve stuck to about 10,5-11vdc where I can still hold the cartridge body without any pain
if not exceeding about 45c temp, I guess you could go higher in a metal headshell
for us civilians, are their issues i need to anticipate having to deal with regarding heat at the cartridge mount? my plan is to mount it on the Durand Tosca which uses an aluminium headshell. any issues with that and me using the tubed phono from Darius?

Joel Durand looked at the rear pins on the DaVa and figured i would need to use the spacer to allow for the pin clearance, so i would assume that would improve the heat dissipation?

Jan 18, 2012
1,565
1,136
570
Drobak Norway
I operate it/them between 10,3 and 11vdc and get no bonus from increasing voltage above 11

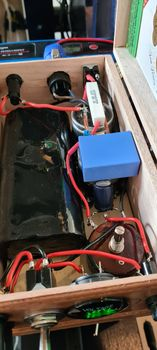

btw have been A/B testing tube rectified and battery supply most of the day, and even if battery is slightly more transparent and clean, I feel the local dc filtering caps along the wire from psu and all the way to the headshell itself is more rewarding, but as a "margin hunter" I prefer both

  • Like
Reactions: Kcin

Mike Lavigne

Member Sponsor & WBF Founding Member
Apr 25, 2010
10,539
6,386
1,460

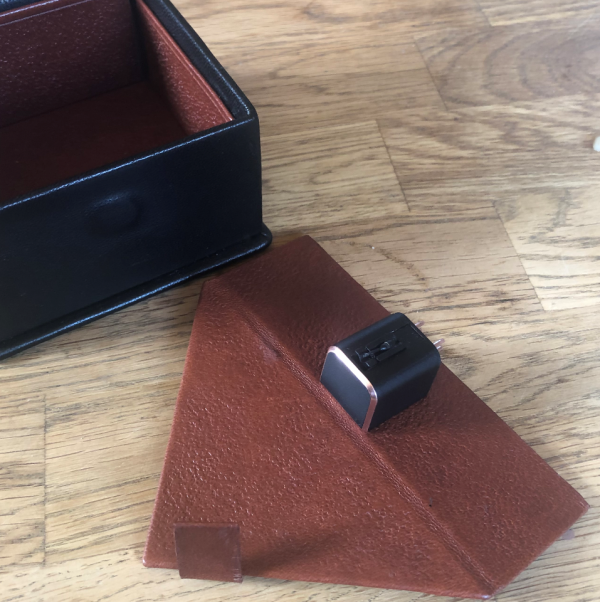

Darius did tease me with this picture yesterday (so it's done), but no shipping info yet....anxious to get it in room and be able to see if the EMIA 1:28 Au SUT works right, so i can get the MC Trio built and be able to switch from arm to arm again. Darius had said that the tube power supply was also done.


Audiophile Bill

Well-Known Member
Mar 23, 2015
3,948
3,341
515
UK
Darius did tease me with this picture yesterday (so it's done), but no shipping info yet....anxious to get it in room and be able to see if the EMIA 1:28 Au SUT works right, so i can get the MC Trio built and be able to switch from arm to arm again. Darius had said that the tube power supply was also done.
View attachment 94136

Looks good, Mike. Which arm and TT will you mount it on first then?


Mike Lavigne

Member Sponsor & WBF Founding Member
Apr 25, 2010
10,539
6,386
1,460
Looks good, Mike. Which arm and TT will you mount it on first then?
the plan is for the DaVa to be mounted to the Durand Tosca on the Saskia.

then the Primary Control FCL arm, which is also due soon (no pics or shipping notice yet), is slated for the NVS with my newest Etsuro Gold. my Durand Telos unipivot will be retired, and my second Durand Tosca will take over mono cartridge duties on the other side of the NVS. i have to re-task the Telos NVS stainless arm board for the FCL.


Solypsa

Well-Known Member
Jun 7, 2017
1,120
744
220
Seattle
www.solypsa.com
In my experience DHL from Lithuania to Seattle is very fast. You might have your hands full pretty soon :)

Jan 18, 2012
1,565
1,136
570
Drobak Norway
@DasguteOhr
should my increased capacitance across the DaVA fieldcoil increase the current draw
I get nowhere near 40-50 hours play time from the 6Ah lithium battery
the measured coil R incl all caps is 93R8....
