New R2R tapes of Jazz at the Pawnshop from AudioNautes

adrianywu

Well-Known Member
Nov 15, 2021
553
659
108
57
I just received my tape copy of Jazz at the Pawnshop from AudioNautes last week. For those of you who are unfamiliar with this recording, which I suspect will be very few, I will outline its origin. This is a live recording made over two days in December 1976 at the Jazzpuben Stampen (meaning pawnshop in Swedish) in Stockholm of a six piece jazz band consisting of alto saxophone, clarinet, piano, vibraphone, drums and bass. The recording was made by the independent Swedish record label Proprius. The recording was made on two Nagra IV-S portable tape recorders on 2-track, 1/4" tape running at 15ips. Nagramaster equalization was used, with Dolby A noise reduction. Neumann U47, M49 and KM56 microphones were used, and mixed to stereo at real time on a Studer mixer. This is almost the exact same set up that my team has been using to make live recordings for the past 20 years, except we do not use noise reduction. The Nagramaster equalization places the high frequency transition at 11.8kHz, which is more than one octave above the more common IEC/CCIR equalization. This means during playback, the high frequencies are not boosted until well beyond the tape hiss frequencies, at the expense of a reduced headroom. Recordings made with this EQ therefore has less noticeable tape hiss.
The recording was originally released as a double LP in 1977. For the US market, the LPs were cut at half speed and pressed at JVC in Japan, and distributed by AudioSource. This is the LP version that I bought on initial release. The recording was immediately lauded by hi fi magazines and audiophiles and became a standard for equipment demos in showrooms and audio shows. The recording has been reissued in almost every format imaginable, and 58 versions are listed on Discogs. The latest version available is on 1/4", 2-track, 15ips tape, which is the subject of this review.
AudioNautes is an Italian company that reissues recordings on LP and digital formats. They have already reissued several Proprius recordings, and they got into the tape format for the first time this year with another well-known Proprius recording, Cantate Domino. Proprius sent the company the original session masters. This is increasingly rare, as we have learned from the latest Mobile Fidelity Sound Lab controversy. There is usually only one session master in existence unless several tape recorders were used in parallel during the recording session (we always run two Nagras in parallel). Editing was often done directly on this tape, and therefore a genuine edited session master (called an edited work part) should have many splices. Record labels would make production masters off the edited work part to be used for cutting LPs, making cassettes and CDs, and as backup copies. The original master is then locked away and rarely touched again. After a number of years, the splices on the session master would have become fragile and often need repairing. These session tapes therefore need to be handled with great care. Some of these recordings were made on tapes that turned out to suffer from sticky shed syndrome. They need to be baked at a precise temperature to drive off the moisture before they can be played, and there are only a limited number of times one can do this. Prying these masters out of the hands of the record labels is therefore a big deal.
According to Fabio Camorani, the owner of AudioNautes, a straight 1:1 safety master was first copied from the session tapes, as stipulated by his contract with Proprius. The safety master was analyzed to identify any problems on the session tapes that require attention. A production master was then made from the session tapes with the minimum amount of manipulation necessary to correct the problems. Customers' tapes are produced by copying from the production master one by one using two directly connected Otari MTR-15 professional tape machines.
The packaging is in my opinion the best of all the commercial tapes I own, as befitting their Italian origin and price. The title comes in two large boxes with beautifully printed reproduction of the album cover in front. Each box contains two reels, each reel placed in its own plastic casing from STIL. Each reel contains the full 33 minutes (2500 feet or 762 meters) of tape, even though a couple of reels contain only 20 minutes of music. That means a bit more winding and rewinding, but it makes the product look more uniform and professional. There is a technical sheet giving details of the recording as well as the duplication, and a certificate of authenticity. A beautifully printed booklet is inserted in a pocket on the inside of the box cover, giving the background and technical details of the recording as well as the method of producing the copies. There are photographs of the artists, the venue, and the original master tapes. The high output studio tape SM900 from RTM is used with custom metal reels laser etched with the title and the individual serial number. My set has a serial number of 009, and the contract does not limit the number of copies, even though Fabio might call it a day after he has produced a certain number of copies.

I don't remember ever sitting down to listen through the whole album in the past for the purpose of evaluating the quality of the sound and music, even though I must have heard this recording reproduced in more systems than any other, given its ubiquity in showrooms and demonstrations at one time. Doing so now is quite revelatory. I started with the tapes, played on my Nagra T Audio tape machine with the playback head wired directly to my DIY balanced tube tape head preamp. I recently modified the equalization circuit of the preamp. Previously, I used a latching relay to switch between the different EQs. As I use CCIR/IEC 99% of the time, I have decided to hardwire the components directly to avoid passing the signal through the magnetized switch. I only need to re-solder a wire in each channel if I want to change EQ. I also changed the trim pots to precision bulk metal foil resistors since the frequency response has remained very stable over time.

Just a few minutes into the first reel, what strikes me is the scale of the sound. The soundstage is wide and deep, with the wind instruments placed upfront. The result is very impressive, as if you are sitting just off the edge of the stage. There is no audible tape hiss at my usual listening volume, as expected from an early generation master tape copy. The sound is extremely alive, with highly realistic dynamics. Even though the recording is upfront, there is no harshness, which can be especially problematic with saxophones and trumpets. The drum and piano solos are rendered with jaw dropping realism. The impact and the reverberation sound completely natural, one of the areas where analogue has an advantage over digital. The piano in particular has a weight and solidity that is rare in recordings, a reach out and touch realism. The sound of the vibraphone is crystalline with a roundness of tone that reflects the character of the chosen mallets. The imaging is superb with each note occupying its space in the air in all its three-dimensional splendor. The music is fun, played with enthusiasm and verve, even though it breaks no new ground. This is not the kind of demonstration record that one has a hard time sitting through. Now that the overdose from 30-odd years ago has dissipated, I will be more than happy to come back to it from time to time for pure musical enjoyment.

After going through all four tapes, I move on to the LPs. They are still in pristine condition since I bought them new and have only played them a few times. I gave them a wash in my Degritter ultrasonic cleaner, and then played them on my Classic Turntable Company-modified Garrard 301 turntable. I use a 12" tonearm built by a German gentleman called Alfred Bokrand, based on the original Ortofon AS-212 but with new bearings, brass counterweights and a banana-shaped aluminum arm tube. This arm has the lowest distortion of all pivoted arms, and has better low frequency extension and power than my SME 3012. The cartridge is an Ikeda 9TT, and the phono preamp is of the same design as my tape head preamp, and with the same complement of NOS tubes. I must say the LPs sound very impressive also. The scale is a little smaller than the tape. It seems to have a bit more high frequency energy, which could be down to the mastering, or perhaps the session master has lost some high frequency with age. The most obvious difference is in the weight and solidity of the piano. While still very impactful, it lacks the reach out and touch quality I find on the tape. The drums too are just that little bit less dynamic than on tape, something one would not notice without back to back comparison.

Analogue tape has this naturalness and flow that is hard to find on LPs, usually only present on direct to disc recordings. The sound of this tape has more density, more saturated tone color and more life-like dynamics compared to the original LPs. The whole process of LP mastering and manufacturing, no matter how well done, will compromise the sound quality to some degree. A direct copy from the original master tape is going to get you as close as possible to the recording session, unless you have the resources to buy the record label (as the Hong Kong-based owner of Naxos, Klaus Heymann, has done) and get your hands on the original masters. But even if you do, would you be willing to play these ancient and precious tapes repeatedly ? Record labels are increasingly reluctant to grant access to their master tape collection, which means the window of opportunity to own copies of genuine master tapes will soon close altogether. Anyone who enjoys this recording should therefore seriously consider investing in this set of beautifully produced tapes.






dminches

Well-Known Member
Oct 22, 2011
3,392
2,778
1,410

adrianywu

Well-Known Member
Nov 15, 2021
553
659
108
57
Do you think these are different than the version now being sold by places like Acoustic Sounds?

Two different companies. The AudioNautes is also listed on Acoustic Sounds.


I don't know whether 2xHD had access to the original session tapes. The original recording was made using Nagramaster EQ and Dolby SR, as you could see on the photo above, but they did not mention it. In fact, they said the tapes they used were CCIR and NAB. They might be using one of the production masters previously made for an earlier release.

  • Like
Reactions: dminches

Steve Williams

Site Founder, Site Owner, Administrator
Two different companies. The AudioNautes is also listed on Acoustic Sounds.


I don't know whether 2xHD had access to the original session tapes. The original recording was made using Nagramaster EQ and Dolby SR, as you could see on the photo above, but they did not mention it. In fact, they said the tapes they used were CCIR and NAB. They might be using one of the production masters previously made for an earlier release.
$1600 for the tape. I like the album and have many digital and analogue versions. I have to pass on this tape at the price


adrianywu

Well-Known Member
Nov 15, 2021
553
659
108
57
Nice review Adrian. Did you post the price of the tape or did I miss it

Almost $1000 for the Acoustic Sounds tape of the same, Ouch
I paid 1340 Euros, which fortunately is now lower than USD, but still very expensive. Fabio told me that Proprius charges a lot for the use of their tapes.


dminches

Well-Known Member
Oct 22, 2011
3,392
2,778
1,410
Two different companies. The AudioNautes is also listed on Acoustic Sounds.


I don't know whether 2xHD had access to the original session tapes. The original recording was made using Nagramaster EQ and Dolby SR, as you could see on the photo above, but they did not mention it. In fact, they said the tapes they used were CCIR and NAB. They might be using one of the production masters previously made for an earlier release.

I didn’t even see the AudioNautes version. Too bad we don’t know exactly what each company used for duplication.


Steve Williams

Site Founder, Site Owner, Administrator
I paid 1340 Euros, which fortunately is now lower than USD, but still very expensive. Fabio told me that Proprius charges a lot for the use of their tapes.
I understand completely but for 2 reels where 12 minutes on each reel is blank tape is a stretch even though I can afford it. They are indeed beautifully packaged. Ultraanalogue makes superb tape recordings for 1/4 of the price


adrianywu

Well-Known Member
Nov 15, 2021
553
659
108
57
I understand completely but for 2 reels where 12 minutes on each reel is blank tape is a stretch even though I can afford it. They are indeed beautifully packaged. Ultraanalogue makes superb tape recordings for 1/4 of the price

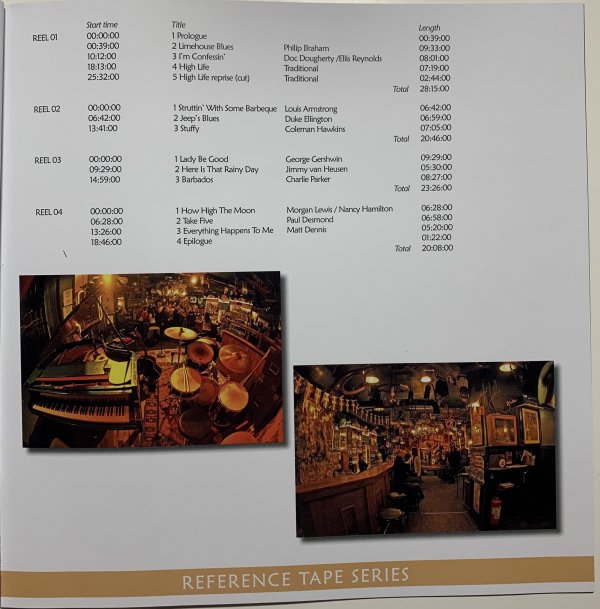

There are 4 reels, with 20 to 28 minutes on each reel as you can see in one of the photos above.


astrotoy

VIP/Donor
May 24, 2010
1,546
1,015
1,715
SF Bay Area
My copy is on its way. Definitely a splurge. My tape is number 13. It was going to be 16, but the purchaser of 13 has Triskaidekaphobia, so I let Fabbio switch his tapes for mine. I also bought the Cantate Domino tape. So lots of money. Still cheaper than a Rolex.

Winston Ma did a vinyl recording from the master on his FIM label, which he gifted me. Gary Koh knows the story behind getting the master tape from Sweden.

Larry

  • Like
Reactions: Steve Williams

astrotoy

VIP/Donor
May 24, 2010
1,546
1,015
1,715
SF Bay Area
  • Like
Reactions: dminches

Renefidelio

Well-Known Member
Nov 27, 2018
6
1
83
51
Two different companies. The AudioNautes is also listed on Acoustic Sounds.


I don't know whether 2xHD had access to the original session tapes. The original recording was made using Nagramaster EQ and Dolby SR, as you could see on the photo above, but they did not mention it. In fact, they said the tapes they used were CCIR and NAB. They might be using one of the production masters previously made for an earlier release.
Hi, here the tapes I got from Proprius/ Naxos. Many 7 inch NAGRA masters + Dolby A. And 4x 10.5 inch CCIR + Dolby SR. Rene 2xHD


Attachments

  • ABDF13CD-FD93-4AB4-BD26-AE28BF822EAC.jpeg
    928.3 KB · Views: 29
  • 1F322CC4-AD19-4A32-9C84-914F4A3A9F8A.jpeg
    1.7 MB · Views: 31
  • FFD82031-7321-4950-957D-20C513CC8662.jpeg
    610.9 KB · Views: 29
  • D8209D96-2136-40C9-BA2C-41FAFA1DD8AE.jpeg
    914.4 KB · Views: 25
  • 52F43814-0AA8-47E0-BEE7-3A4B6DAF6221.jpeg
    794.9 KB · Views: 27

adrianywu

Well-Known Member
Nov 15, 2021
553
659
108
57
Hi, here the tapes I got from Proprius/ Naxos. Many 7 inch NAGRA masters + Dolby A. And 4x 10.5 inch CCIR + Dolby SR. Rene 2xHD
Interesting. They might have used the IV-S without QGB and recorded on 7" reels. They then assembled the edited parts onto larger reels.Do the 10.5" reels with CCIR EQ have splices ? These might be 1st generation masters from the edited work parts. Dolby SR was not available until the 1980s, so these larger reels must have been copied some years after the original recording was made.

  • Like
Reactions: AEAaudio

Fishfood

VIP/Donor
Jul 11, 2020
537
541
255
44
I paid 1340 Euros, which fortunately is now lower than USD, but still very expensive. Fabio told me that Proprius charges a lot for the use of their tapes.
I have a neighbor who would come play live once a week for one hour for a year for that :)

  • Haha
Reactions: Johan K

Renefidelio

Well-Known Member
Nov 27, 2018
6
1
83
51
Hi, here the tapes I got from Proprius/ Naxos. Many 7 inch NAGRA masters + Dolby A. And 4x 10.5 inch CCIR + Dolby SR. Rene 2xHD
The Master form Proprius is amazing, the Neumann U47 Tube microphone in ORTF mic technic was used has a main pair of mic direct to a Studer mixer with the 2x Nagra IV-S on 7" small reel tape so he can start the second machine (live recording) and have time to change the tape on the first one.It was recorded on Nagra MASTER EQ but also with dolby A so there is no noise on the recording but it is analog. The presence and timbre is very realistic. When I transfer it at 2xHD.com LAB I used Nagra T but with custom Vacuum Tube tape head electric with Nagra MASTER EQ curve on it. For the recording I use 4x NAGRA IV-S on battery with SM-900 RTM Tape in CCIR EQ with high end German Reel for very low wow and flutter. On special order I can offer NAGRA MASTER EQ Curve for NAGRA play back machine or NAB. It is now in stock right now. You can check the customer review:
Customer Reviews
(5.00 Stars) 1 person(s) rated this product.

One of the best​

posted on 12/16/2022
5 Stars
Reviewer: Stephen DeWolfe
I had this on vinyl years ago, loved it. I have now acquired a 1/2 track Studer A807. I felt that I would take the plunge and try this tape. This tape is so much better than I remember. The dynamics are outstanding, with very clear upper range. I swear I can here a differences in the instruments I never heard on vinyl. It was nice the set back and just get lost in the music and the performance. I feel that it was money well spent.
https://store.acousticsounds.com/d/172329/Various_Artists-Jazz_At_The_Pawnshop-14_Inch_-_15_IPS_Tape


Zeotrope

Well-Known Member
Feb 11, 2021
1,708
1,368
230
49
France, Canada
According to Fabio Camorani, the owner of AudioNautes, a straight 1:1 safety master was first copied from the session tapes, as stipulated by his contract with Proprius. The safety master was analyzed to identify any problems on the session tapes that require attention. A production master was then made from the session tapes with the minimum amount of manipulation necessary to correct the problems. Customers' tapes are produced by copying from the production master one by one using two directly connected Otari MTR-15 professional tape .
.

Interesting. So the production chain is:
Master -> Safety Master -> Production Master -> (Many) plays -> Customer Copy
According to @sonicflare on YT, we lose about 6dB per copy.

This means that the vinyl album is a more direct copy of the Master.

It would be interesting to compare the sound quality on a top-tier TT (eg, Nagra, Air Force 0 or 1, SAT) with a top-tier R2R.
