No braces.....the plate is 3/4" Aluminum that weighs 60lbs. It was originally to be used for the top plate until David alerted me to change to Steel. Perhaps cross braces would be appropriate for thinner shelf material. I plan to brush or spray some enamel on the white casters to match the main stand's satin black powder coat.
so it will rest on the frame, and not be attached?


Mike Lavigne

Member Sponsor & WBF Founding Member
Apr 25, 2010
7,085
13
38
I'm not sure if it's bolted from underneath or not. I plan to support the motor control unit and maybe another phono stage. Perhaps a TS 150 will fit on it. ;)
a pair of TS-150's would fit side by side, since you have so much depth.

if the shelf is not securely attached I would expect it to resonate. and you may want some sort of interface between the shelf and the support beams that will compress to dampen resonance with countersunk flat tapered screws and bolts below.

or conversely; it might be better to de-couple the shelf from the rack and use some sort of damper interface.

in any case, just laying it on the supports is not a good idea.

it would be important to make sure that drilling holes in the support beams does not compromise the Nano-damping aspect of the rack (likely not, but good to check first).

I know I'm over-thinking this, but this whole tt direction is like that.

May 30, 2010
13,935
18
38
Portugal

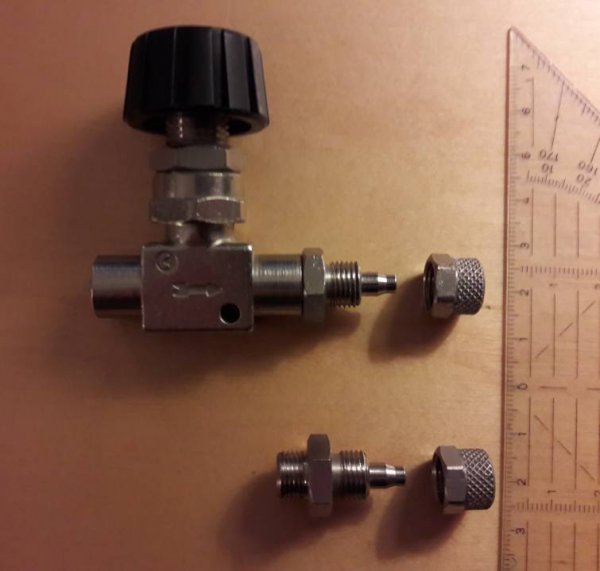

Since this thread deals with air bearing turntables I will ask for help here. My air bearing turntable uses this type of valves and pneumatic fittings and I am needing a few of each of them. Does any one know what are the correct designations of them, and it would be even better, a supplier in Europe? An eBay seller would be great! The ruler scale is mm, although threads are imperial.


Attachments

rockitman

Member Sponsor
Sep 20, 2011
6,871
1
38
Northern NY
a pair of TS-150's would fit side by side, since you have so much depth.

if the shelf is not securely attached I would expect it to resonate. and you may want some sort of interface between the shelf and the support beams that will compress to dampen resonance with countersunk flat tapered screws and bolts below.

or conversely; it might be better to de-couple the shelf from the rack and use some sort of damper interface.

in any case, just laying it on the supports is not a good idea.

it would be important to make sure that drilling holes in the support beams does not compromise the Nano-damping aspect of the rack (likely not, but good to check first).

I know I'm over-thinking this, but this whole tt direction is like that.
I will ask them about it. At the very least, there would be a layer of damping material between the frame and the shelf plate.


rockitman

Member Sponsor
Sep 20, 2011
6,871
1
38
Northern NY
I will ask them about it. At the very least, there would be a layer of damping material between the frame and the shelf plate.
Damping layer adhered to the frame, under the shelf plate has been confirmed. The 60lb shelf's weight is enough for a secure, vibration damped bond with frame. No bolts into frame were deemed necessary.
