Why does the Tp-1000 have two inputs and the associated input level controls if it’s playback only?
Analog Audio Design TP-1000
- Thread starter stellavox
- Start date
Because it is prepared for the record version which will be retrofitted should the owners of the repro only version wish to.
I see, thanks. I like the implementation of the dual inputs, with the LEDs so you can see which is active.
Is there an option for a tape head pre-out?
I like that it has a built-in headphone amp.
Is there an option for a tape head pre-out?
I like that it has a built-in headphone amp.
The ATR can handle 14" if the reel motors are mounted in the appropriate position. Otherwise, the limit is 10.5", but all ATRs can be converted without further modification and all have swappable deck plate inserts to support both motor-mount locations.
The A80RC does 14"? I thought it was limited to 12.5".
I got confused too...
I am thinking of making 14" platters for my ATR's, as I have some pancakes that are larger than their 12.5" ones. I can handle them, and have... but would not mind an extra bit of safety.
Carbon fiber sheets are inexpensive, so maybe I should use it.
I am thinking of making 14" platters for my ATR's, as I have some pancakes that are larger than their 12.5" ones. I can handle them, and have... but would not mind an extra bit of safety.
Carbon fiber sheets are inexpensive, so maybe I should use it.
Tonbandspule/Feinwerkstechnik in Germany started making 14s as well when I got them to make 12,5s reels
ask if they do 14" pancakes as well
ask if they do 14" pancakes as well
As AM Belgium had butterfly heads in their inventory and did not have to launch the production of a batch, Christophe Martinez was able to complete my tape deck earlier than expected. It has been shipped and I should receive it next week after the long Easter weekend.

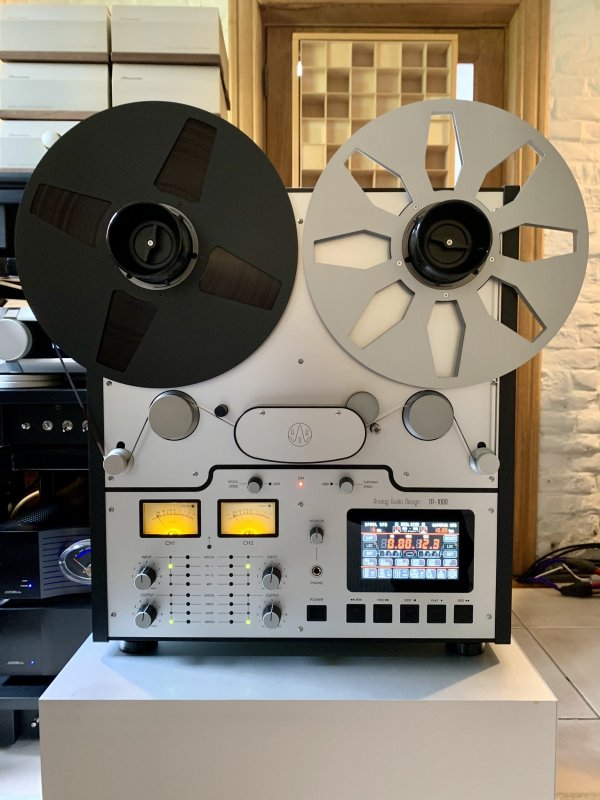

My Analog Audio Design TP-1000 tape deck has been delivered.

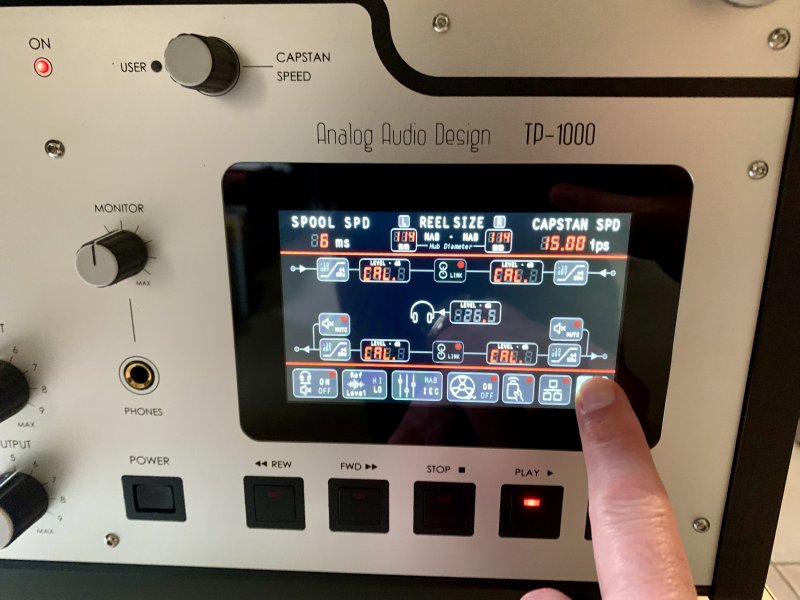

The grey and black finish is quite pleasing. The touch screen is very intuitive and allows accessing numerous settings. I acquired the optional remote control. There is also an ethernet port for downloading the software update and allowing remote diagnostic.
This is currently a repro only machine but it can be retrofitted into a record machine once Christophe Martinez has finalised the record version.
The transport is very smooth and ultra quiet. It can play reels up to 12 inch.

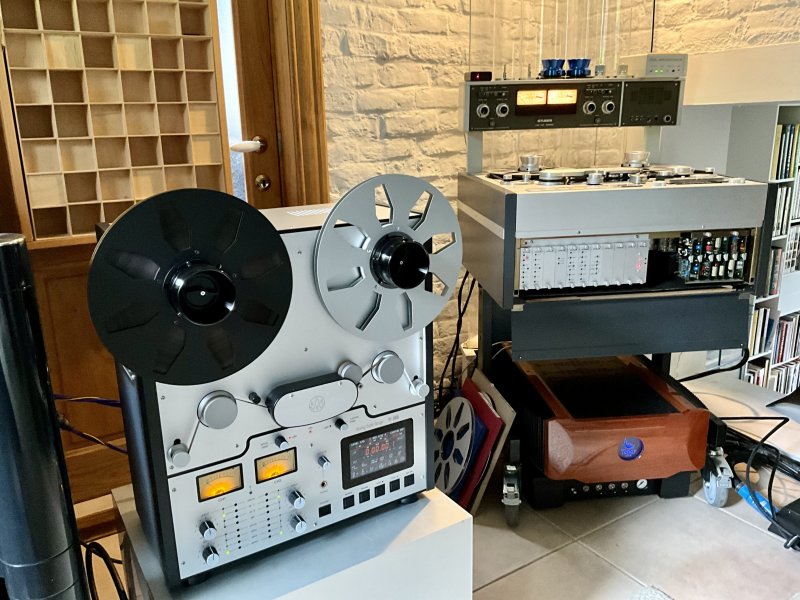

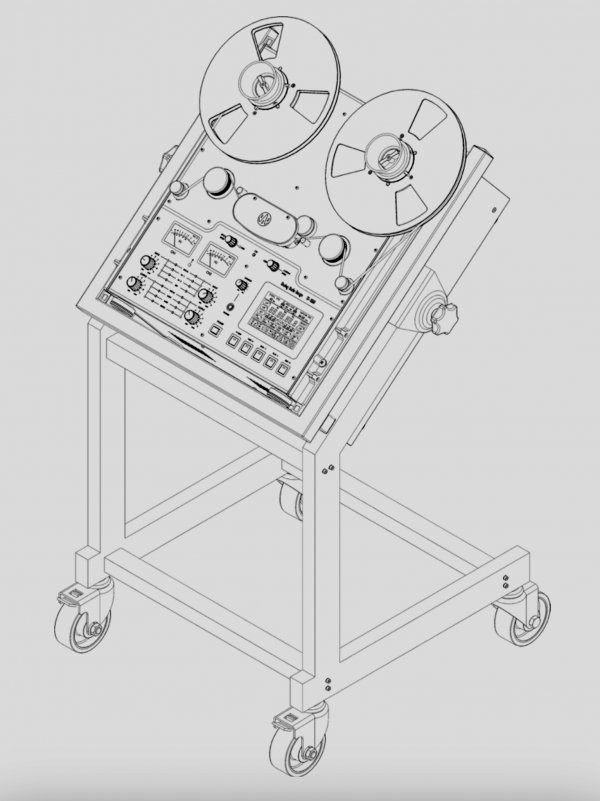

The current setup is temporary as I am still waiting a professional 19" trolley as well as the mounting kit from Analog Audio Design which will allow to install the tape deck into the trolley.
I still need to compare it against the Studer A80 RC MKII with modified repro electronics and the Nagra IVS/QGB combo but the first listening sessions are very convincing.
The grey and black finish is quite pleasing. The touch screen is very intuitive and allows accessing numerous settings. I acquired the optional remote control. There is also an ethernet port for downloading the software update and allowing remote diagnostic.
This is currently a repro only machine but it can be retrofitted into a record machine once Christophe Martinez has finalised the record version.
The transport is very smooth and ultra quiet. It can play reels up to 12 inch.
The current setup is temporary as I am still waiting a professional 19" trolley as well as the mounting kit from Analog Audio Design which will allow to install the tape deck into the trolley.
I still need to compare it against the Studer A80 RC MKII with modified repro electronics and the Nagra IVS/QGB combo but the first listening sessions are very convincing.
Congratulations, dcc! Your comparative report versus A80 will be extremely interesting to many people!
Congratulations @dcc ! Enjoy it!
Nice to see new machines in owners homes.
My Papillon arrives in about 6 weeks…
Nice to see new machines in owners homes.
My Papillon arrives in about 6 weeks…
Over the last two days, I have been intensively comparing the Analog Audio Design TP-1000 against the Studer A80 RC MKII. The latter has been fully refurbished with upgraded repro electronics (details here https://www.whatsbestforum.com/threads/my-little-barn.26426/page-2).
I don't have two identical sets of power and interconnect cables. The Studer is fitted with an Hemingway z-Core Alpha power cable and a pair of Elpispandora Daphne XLR interconnect cables whereas the AAD has a Black Cat PC2 and a pair of Elpispandora Daphne Light XLR. It could be argued that I gave the Studer a slight edge.
Comparisons were performed with a wide variety of tapes but mainly classical music with several piano pieces (concertos, chamber music and solo sonatas).
The differences between the two tape decks are subtle. Subjectively, the Studer seems being more linear i.e. pro studio like whereas the AAD is a little bit "warmer". Soundstage, dynamics, transparency and note decay are similar.
I had some reservation when this tape deck was announced. Having had the chance to meet his designer and to test it during two days got me interested in acquiring one.
Overall the Analog Audio Design is a quite attractive package for those who don't want to embark into the overhaul of a vintage tape deck.
I don't have two identical sets of power and interconnect cables. The Studer is fitted with an Hemingway z-Core Alpha power cable and a pair of Elpispandora Daphne XLR interconnect cables whereas the AAD has a Black Cat PC2 and a pair of Elpispandora Daphne Light XLR. It could be argued that I gave the Studer a slight edge.
Comparisons were performed with a wide variety of tapes but mainly classical music with several piano pieces (concertos, chamber music and solo sonatas).
The differences between the two tape decks are subtle. Subjectively, the Studer seems being more linear i.e. pro studio like whereas the AAD is a little bit "warmer". Soundstage, dynamics, transparency and note decay are similar.
I had some reservation when this tape deck was announced. Having had the chance to meet his designer and to test it during two days got me interested in acquiring one.
Overall the Analog Audio Design is a quite attractive package for those who don't want to embark into the overhaul of a vintage tape deck.
There is a the link in my previous post. This is bespoke tape head preamp designed by my tech which is integrated into the A80 by using some empty card slots.
