Siltech Octopus Eight

[Stereophonic]

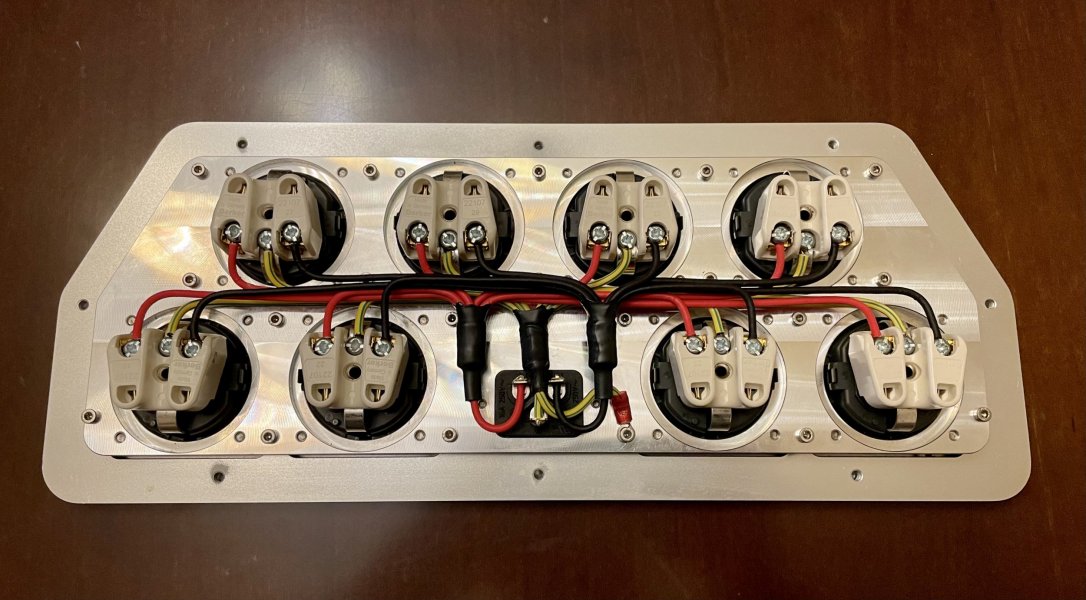

Showned my Siltech Octopus Eight Silver Gold Version inside for all the conditioners fans. Very rare to find...

Enjoy !!!!



[analogsa]

Great stuff! Thank you!

Any idea if wires under the heatshrink are crimped or soldered together?



[Stereophonic]

What means heatshrink?



[Kingsrule]

The bottom row is wired out of phase from the top row......



[Stereophonic]

The bottom row is wired out of phase from the top row......

Yes. It is insignificant.
This way you have same line pin (left one) on every connector...



[Rocoa]

Thank you for the images.
A true star configuration, as it should be!

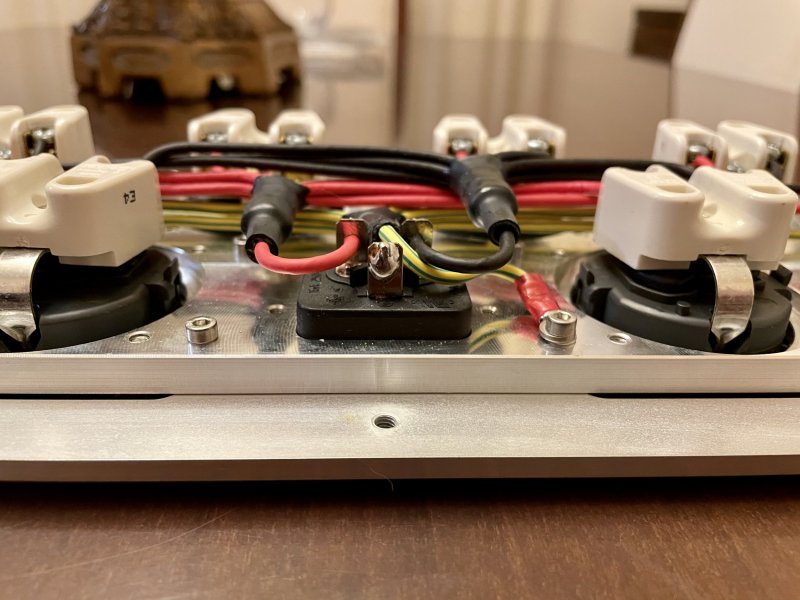

Y suposse that the wires under the heatshrink are crimped. It is much better than solded.
If you look at it you will be able to see the hexagonal shape of the grimped cap.
