Optimum Internet and Network Setup for Audio

Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41
Can somebody point me to a link or provide an diagram or schematic of optimum network setup that prioritizing on audio? I will be moving things tomorrow and going to convert my temporary wifi based streaming to a more permanent cable/ethernet connection. First I am going to move my internet fiber optic cable and the modem to the audio room to keep cable as short as possible. I need to know where to put the modem in the chain, where to put the audiophile switches in the chain, where to put the router/wifi for general internet, etc…something like a schematic drawing would be wonderful. Thanks for any help!

  • Like
Reactions: ashandger

Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41
One more question please. How important is Category on ethernet cable? Is Cat 8 preferable to Cat 6? Any audible difference on a short run?


DasguteOhr

Well-Known Member
Sep 26, 2013
935
891
355
Germany
For music irrelevant ,Cat 6 cable keeps 250 megahertz speed even over long distances no need Cat 8.
latency times play a major role here


Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41
Awesome.

after modem I should put switch first then wifi router or vice versa?


Armsan

Well-Known Member
Jan 28, 2016
101
49
135
Portugal
  • Like
Reactions: Uwiik

DasguteOhr

Well-Known Member
Sep 26, 2013
935
891
355
Germany
can you take a picture of the phone and internet connection wall socket. what is your DSL connection speed?

  • Like
Reactions: Uwiik

audiobomber

Active Member
Oct 13, 2020
84
43
25
Sudbury ON, Canada
Can somebody point me to a link or provide an diagram or schematic of optimum network setup that prioritizing on audio? I will be moving things tomorrow and going to convert my temporary wifi based streaming to a more permanent cable/ethernet connection. First I am going to move my internet fiber optic cable and the modem to the audio room to keep cable as short as possible. I need to know where to put the modem in the chain, where to put the audiophile switches in the chain, where to put the router/wifi for general internet, etc…something like a schematic drawing would be wonderful. Thanks for any help!
The attached network infographic is the starting point. The modem is not shown in the diagram, but it is always upstream of the router. Audiophile modifications start after the basics. This page has details on an extreme version, courtesy of @austinpop
Click on the Audio System tab:

Note that fiber optic cable length is irrelevant. Once the signal has been converted to optical, it can travel for miles, unaffected by EMI or RFI. Try to keep the networking gear, i.e. modem, first switch, router, NAS, printer, etc., upstream of the fiber optic cable and physically distanced from the main audio system.

Be careful with shielded ethernet cable. Some CAT6a, and CAT7, and all CAT8 cables, have the shield attached at both ends, which can pick up and transmit ground plane noise between the attached components. You can check whether this is a problem with a continuity meter.


Attachments

  • Network Infographic.jpg
    Network Infographic.jpg
    19.9 KB · Views: 55
  • Austinpop's system.png
    Austinpop's system.png
    263.2 KB · Views: 58
Last edited:
  • Like
Reactions: Uwiik

Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41
can you take a picture of the phone and internet connection wall socket. what is your DSL connection speed?
It’s a common patchcord simplex fiber optic wire, not going to the wall, it’s got an internet box on my patio wired to underground network, then from the internet box to my modem via patchcord FO wire, basically I just bought a new patchcord FO wire and going to move that new cable to end up where my audio is in order to keep connection as short as possible. The connection speed is 500mbps and I am getting around 200-250 mbps actual speed.


Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41
T
The attached network infographic is the starting point. The modem is not shown in the diagram, but it is always upstream of the router. Audiophile modifications start after the basics. This page has details on an extreme version, courtesy of @austinpop
Click on the Audio System tab:

Note that fiber optic cable length is irrelevant. Once the signal has been converted to optical, it can travel for miles, unaffected by EMI or RFI. Try to keep the networking gear, i.e. modem, first switch, router, NAS, printer, etc., upstream of the fiber optic cable and physically distanced from the main audio system.

Be careful with shielded ethernet cable. Some CAT6a, and CAT7, and all CAT8 cables, have the shield attached at both ends, which can pick up and transmit ground plane noise between the attached components. You can check whether this is a problem with a continuity meter.

This is super awesome and exactly what I needed. Just a quick question, just wondering about the reason to use 3 switches (Buffalo, Uptone, Sotm)? Seems like redundant but perhaps there is a valid reason?


audiobomber

Active Member
Oct 13, 2020
84
43
25
Sudbury ON, Canada
T


This is super awesome and exactly what I needed. Just a quick question, just wondering about the reason to use 3 switches (Buffalo, Uptone, Sotm)? Seems like redundant but perhaps there is a valid reason?
You would need to ask austinpop. I can't think of a technical reason, so he must think it adds something sonically?

  • Like
Reactions: Uwiik

austinpop

Well-Known Member
May 23, 2017
130
380
148
Austin, TX
Hi,

You are right. Functionally, there is no reason for 3 switches in series. These switches in the path are really there for SQ reasons, and the order was determined empirically, using listening tests.

Keep in mind, this (Optimizing the network chain) is a deep rabbit hole, and I've since taken a different path, where I only play local music using a player that does not require a constant network connection. After I hit play, I just turn off the switches, so for me the best SQ is with "no network." Obviously, this is not practical for streaming, but you can go nuts with network optimization. There is (still) no right answer. People I know have tried 4/5/6 switches in series, and still found the SQ to improve. Where does it end?

:)


Blackmorec

Well-Known Member
Feb 1, 2019
566
821
168
Hi,

You are right. Functionally, there is no reason for 3 switches in series. These switches in the path are really there for SQ reasons, and the order was determined empirically, using listening tests.

Keep in mind, this (Optimizing the network chain) is a deep rabbit hole, and I've since taken a different path, where I only play local music using a player that does not require a constant network connection. After I hit play, I just turn off the switches, so for me the best SQ is with "no network." Obviously, this is not practical for streaming, but you can go nuts with network optimization. There is (still) no right answer. People I know have tried 4/5/6 switches in series, and still found the SQ to improve. Where does it end?

:)
With a Taiko Extreme?

  • Like
Reactions: Uwiik

StreamFidelity

Active Member
Jun 30, 2020
83
90
25
Rostock, Germany
griggaudio.de
Can somebody point me to a link or provide an diagram or schematic of optimum network setup that prioritizing on audio?

I use a combination of copper cable (CAT 7) and fiber optics. From the router (Fritz!Box) it goes to the Afterdark switch. This contains 2 Buffalo BS-GS2016 which are galvanically separated via fiber optics. Both are reclocked by a particularly high-quality Emperor Giesemann EVA clock (phase noise: 10Hz -145dBc / Hz).

A special feature is the Solarflare X2522 NIC in the Audio PC with very low latencies and jitter. Originally designed for high-speed trading in exchanges. ;)

Conclusion:
- The use of fiber optics enables the devices to be galvanically isolated from one another.
- The reclocking has a very positive effect. The better the clock, the more analog the sound.
- High-speed network cards significantly reduce latency and jitter.
- Managed switches such as Buffalo allow further fine adjustments. For example, for audio the MAC address filtering, QoS prioritization and VLAN network.



Keep in mind, this (Optimizing the network chain) is a deep rabbit hole

I agree. It took me a lot of time to build this network. Since then I haven't heard any difference between local and streamed music files.

  • Like
Reactions: Thuan and Uwiik

DasguteOhr

Well-Known Member
Sep 26, 2013
935
891
355
Germany
It’s a common patchcord simplex fiber optic wire, not going to the wall, it’s got an internet box on my patio wired to underground network, then from the internet box to my modem via patchcord FO wire, basically I just bought a new patchcord FO wire and going to move that new cable to end up where my audio is in order to keep connection as short as possible. The connection speed is 500mbps and I am getting around 200-250 mbps actual speed.
I would ask you specialist retailers whether the AVM Fritzbox 7590 internatiional works in your country. then only have one device.
You can use it as NAS Server via 3.0 usb and mobile harddisk.
Modem , Router, wlan , mobile phone, 4 lan ports,nas sever all in one.
Fiber optic as option for connection


Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41
T


This is super awesome and exactly what I needed. Just a quick question, just wondering about the reason to use 3 switches (Buffalo, Uptone, Sotm)? Seems like redundant but perhaps there is a valid reason?
Thanks for the explanation @audiobomber @austinpop @StreamFidelity, now I understand more about the reason daisy chaining multiple router/switches, I also spent some time reading through the pages of another thread discussing network improvement, I definitely learnt A LOT and I can see where the rabbit hole is…..


I think I will opt for adding Ubiquity Edge X switch/router (operating as router) with an addition of M12 switch gold and corresponding LPS and call it a day as I am actualy quite happy with my current simple and cheap setup (Modem—>ASUS WiFi Router-->Whole House Wifi—>MacBook Pro—>Streamer), it might be very noisy by audiophile standard but my Kuzma XL DC with HSE Phono is not setup yet so I am still happy for nothing to compare my digital with as I just upgraded my entire components and still enjoying the massive improvement….I will leave the addition of Etherregen and SOTM switch for another day/month/year when I have itch to scratch.

My system will be for Taiko Extreme with no NAS, just the Taiko Extreme and Pillium Elektra DAC, NOW the BIG question is;

There are two popular setup each with own followers… those two are:
1. Modem —> ASUS Wifi/Router —>Ubiquiti Edge Router—>M12 Switch—>Extreme ———————————————————> ASUS Wifi —>Whole House Wifi
2. Modem —> Ubiquiti Edge Router —>M12 Switch—>Extreme
—————————————————————>ASUS Wifi —> Whole House Wifi

Please kindly correct me if I am wrong but I favor option no.2 as it seems to provide complete isolation between quiet Audio internet/network and very busy Whole House internet/network, but I can foresee a major problem where Roon on my iPad on Wifi won’t be able to see where the Roon Core (Taiko Extreme) is because I think option no.2 treat the ASUS and M12 Switch as two completely different network?? Correction/suggestions please…

Thanks a lot!! It’s wonderful here…

Last edited:

Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41

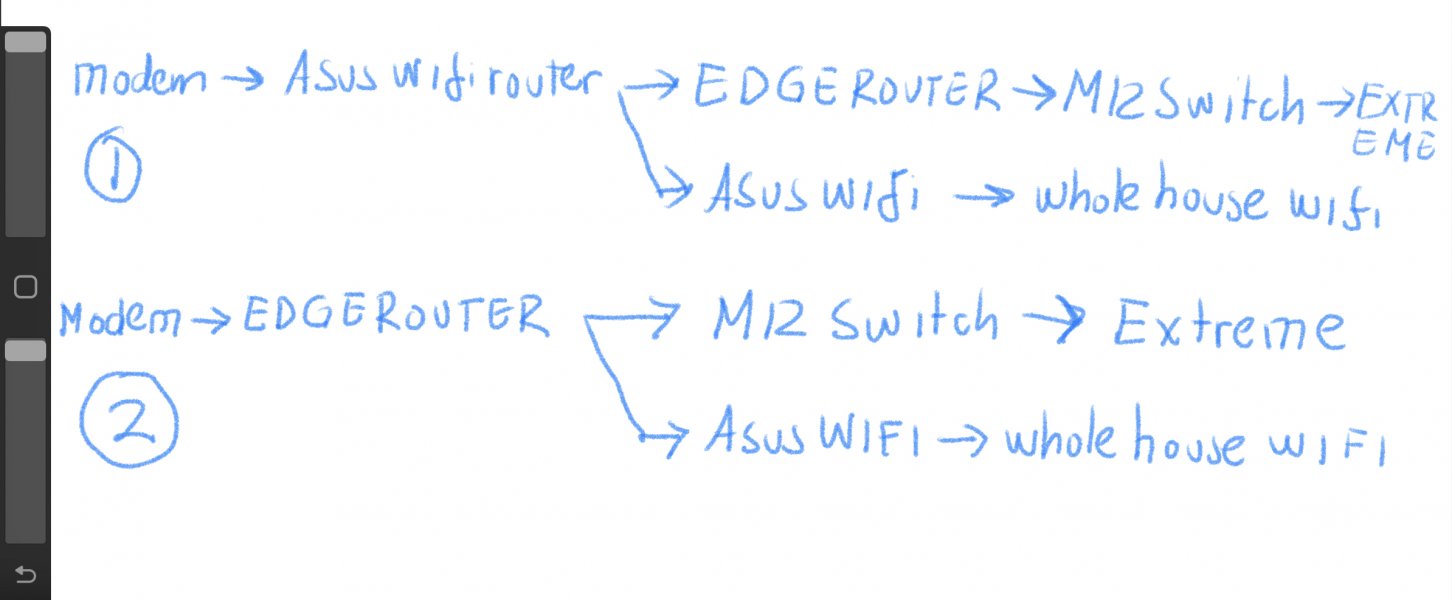

I have terrible handwriting but this might explain better for option no.1 vs option no.2


ctydwn

Well-Known Member
Aug 23, 2019
201
591
163
Hi Uwiik,
Thanks for starting this thread and for the inquiry. And of course to the respondents. There are dozens and dozens of pages on other threads on WBF and this helps distill and cut to the latest recs.
I do use Option 2 above (modem->Edge->M12->Extreme, however I use a second LAN port from the modem to a wifi access point that then feeds the house under a separate network. Not sure if you have this option or if I am truly isolating my wifi network from the Extreme. But it sounds very good and I really can't tell a difference between local playback and streaming....hope that is useful, and again thanks everyone.

Last edited:
  • Like
Reactions: Uwiik

Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41
Hi Uwiik,
Thanks for starting this thread and for the inquiry. And of course to the respondents. There are dozens and dozens of pages on other threads on WBF and this helps distill and cut to the latest recs.
I do use Option 2 above (modem->Edge->M12->Extreme, however I use a second LAN port from the modem to a wifi access point that then feeds the house under a separate network. Not sure if you have this option or if I am truly isolating my wifi network from the Extreme. But it sounds very good and I really can't tell a difference between local playback and streaming....hope that is useful, and again thanks everyone.
Hi Ctydwn,
thanks for the insight, I do have the option you mentioned because the modem supplied by my ISP is a modem/wifi/ethernet router (wifi currently disabled).

About the playback, are you using Roon or any other iPad/iPhone streaming apps? If so, do you have any problem with your iPad finding your Roon core on different network?


Uwiik

Well-Known Member
Mar 3, 2021
327
234
45
41
just checked, they don’t even know what it is and nobody sells this brand/model in the country, so I doubt it very much. Thanks anyway for the insight!

  • Like
Reactions: DasguteOhr
