Dirac with JRiver and EMM DAC

Nov 17, 2011
75
0
0
#1
Hello

I am evaluating Dirac package, opened a ticket with their support, but it is somewhat slow..

Setup:
Windows 10, running JRiver 21 output going to EMM XDS1 via USB (ASIO)

With UMIK-1 created filter, saved it and also the project.

Then set the output device to WASAPI-based Dirac Processor (aka virtual sound card), and the sound came very distorted.

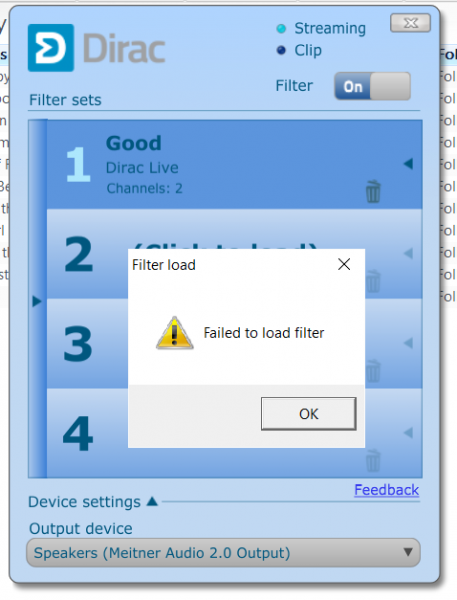

When trying to load generated filter, get a generic error 'cannot load filter' without any kind of specifics (what, why?)

Then just switch off the filters using slider in the processor panel, but still the sound was distorted

In processor panel the output device is set to same ASIO Meitner Audio

Any clue?


prerich

New Member
May 21, 2012
232
0
0
#4
Yes

JRiver -> Dirac -> Meitner sounds distorted, even with filters off
Sounds like a driver issue to me. I had the same problem with a DIY dac. I had to hunt for a decent driver (took 2 months to find one - as it was a Chinese Dac that I was experimenting with). However after I found the right driver, Gold!!!

Which version of JRiver do you have (do you have a master license for Linux, Mac, and PC)? If you have a linux machine around - you may want to experiment with it since Linux supports USB Audio 2.0 without the need of drivers.

Does it work properly without Dirac?

Nov 17, 2011
75
0
0
#5
Yes, of course it works perfectly direct from Jriver. It is not a driver issue, but related ro Dirac. Moreover, Dirac managed to generate sweep tones.

I have read on computer audiophile that there is a VST module (like FabFilter), but I don't know where to get it

Nov 3, 2014
405
0
0
#6
Yes, of course it works perfectly direct from Jriver. It is not a driver issue, but related ro Dirac. Moreover, Dirac managed to generate sweep tones.

I have read on computer audiophile that there is a VST module (like FabFilter), but I don't know where to get it
The Dirac VST plugin is unsupported Beta software available only from Dirac upon request. It is not available during the 30-day evaluation. Actually, I do not think it is available with the Stereo license to Dirac, only the "full" 8-channel version. But, I use it and I know Kal uses it. I like it, but I would not swear that it makes any sonic difference vs. using the separate DAP software. It is more of a convenience, eliminating some connectivity issues.

I agree with others here. It sounds like the OP has a driver issue in conjunction with Dirac. I have not had that experience with the ASIO driver to my Exasound E28 with DAP or with the VST plugin to JRiver using Win7Pro.

Nov 17, 2011
75
0
0
#7
I am confused, what can I do?
Dirac did not respond so far to my inquery.

EMM is USB Audio 2.0 device, never had any issue with either foobar or Jriver

Jan 29, 2014
983
0
0
Cape Town South Africa
#8
dirac should have a section where you can set the amount of attenuation it uses to avoid digital clipping , check that it's at least -6db ..-10 is default , if its at 0 , its going to generate digital clipping , very nasty distortion
Also check that your measurement i/o levels are correct
Also .. check this
For Windows users: If available, the preferred choice should be an ASIO device. If
ASIO is not available, or if it sounds distorted, then try a non-ASIO device (the same
hardware can show up as multiple devices, depending on what
audio interfaces its driver supports).

Nov 17, 2011
75
0
0
#9
Yes, I've checked and played with the attenuation last week, it is -8db, however the filters are OFF anyway, so Dirac should not do any processing, but rather passthrough

It is ASIO, checked also with WASAPI.. No much difference.. ASIO was OK when measuring, though

The sound is not just distorted, it is like the very poor cellular connection


Is it a big company, Dirac? Wonder why these guys gave me their first response from the helpdesk after couple of days, and now it is 3 days since I haven't heard a word from them

I would try a VST

Nov 17, 2011
75
0
0
#12
That might be the direction: but I thought this is done automatically, what do I need to check (and where?)

Appreciate your help (as Dirac still did not respond)

Thanks!


Kal Rubinson

Active Member
May 5, 2010
1,437
0
36
NYC/CT
www.stereophile.com
#13
That might be the direction: but I thought this is done automatically, what do I need to check (and where?)

Appreciate your help (as Dirac still did not respond)

Thanks!
It is automatic IF you have made filters for all the sampling rates you use.
