“ Supremized “ Audio room

audioblazer

Member Sponsor
May 13, 2010
765
204
1,605
Malaysia
id=https://m.facebook.com/story.php?story_fbid=1690636360960429&id=977771142246958&funlid=tlRnlckJPM8PoXl8


Lee

Well-Known Member
Feb 3, 2011
3,210
1,738
1,260
Alpharetta, Georgia
Hard to tell by photos alone but my bet is that this is over-damped. I see and hear so many rooms that are over-damped and the midrange is sucked out.


Jazzhead

VIP/Donor
Aug 26, 2012
1,466
108
985
Hard to tell by photos alone but my bet is that this is over-damped. I see and hear so many rooms that are over-damped and the midrange is sucked out.

How have you come to the conclusion that it's over damped ? It's all diffusion with seemingly zero absorption .


Lee

Well-Known Member
Feb 3, 2011
3,210
1,738
1,260
Alpharetta, Georgia
How have you come to the conclusion that it's over damped ? It's all diffusion with seemingly zero absorption .

Looked to me like lots of absorption panels on the side.


853guy

Active Member
Aug 14, 2013
1,161
10
38
How have you come to the conclusion that it's over damped ? It's all diffusion with seemingly zero absorption .

Hi gents,

To me it looks like a combination of diffusion and absorption. At a guess it looks like there's absorption in the form of bass/corner traps, on the wall behind the speakers in between the horizontal slats and in the ceiling also - the hard diagonal frames likely have absorption in the centre, with the reflective surfaces facing out for diffusion, and the absorptive surface in the middle to tame bounce. It looks like diffusion is used nearly exclusively for the walls, although the grey strip at the wall/floor interface and the gold/bronze coloured textured fabric could also be absorption. There's also a black textured panel in the ceiling at the very top of the frame in the third photo.

Yes, I'm guessing, but I'd be surprised if a speaker that has six 11" passive radiators on the back wouldn't need some sort of absorption given its directivity and ability to energise a room.

Be well,

853guy

Last edited:

GaryProtein

VIP/Donor
Jul 25, 2012
2,542
31
385
NY
It goes to show you really can't tell much from photos!


NorthStar

Member
Feb 8, 2011
24,305
1,323
435
Vancouver Island, B.C. Canada
Looked to me like lots of absorption panels on the side.

It looks to me too. And I would assume that a world class music listening room is professionally tuned acoustically.

https://m.facebook.com/photo.php?fb...et=pcb.1690636360960429&source=48&soft=search


Last edited:

Lee

Well-Known Member
Feb 3, 2011
3,210
1,738
1,260
Alpharetta, Georgia
I like his choice of gear. The Marten speakers are very, very good although I've mostly heard them with EAR electronics.


Tango

VIP/Donor
Mar 12, 2017
4,938
6,268
950
Bangkok

audioblazer

Member Sponsor
May 13, 2010
765
204
1,605
Malaysia

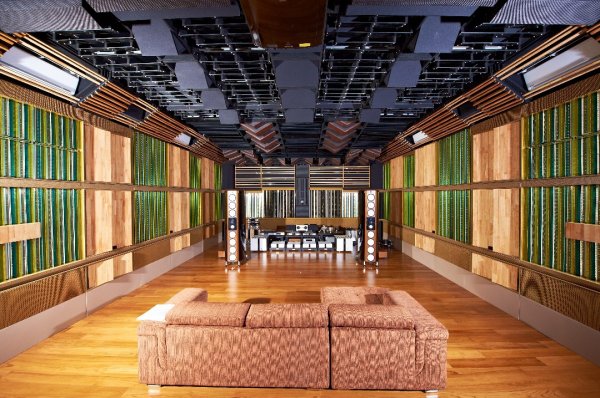

Marten Supreme 2. Room size 22x 36 x 12ft


audioblazer

Member Sponsor
May 13, 2010
765
204
1,605
Malaysia

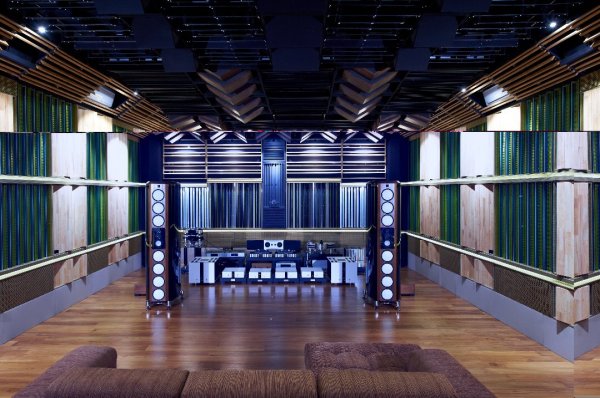

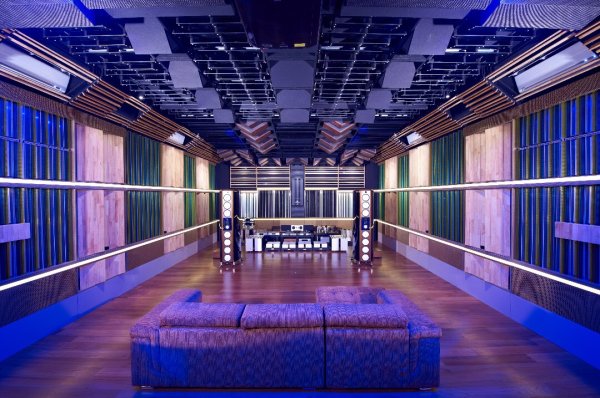

Different mood of the room . 50+ transformers located on the ceiling of another room to ensure that the dimmers does not affect the SQ.
12” thick side walls, 2 layers of concrete with fine sand in between wall. Floor 12” concrete with a 1.25” hardwood. Cost of room + acoustic treatment cost more than USD100-200k .
Took the acoustician more than 2 months to finish the room with 2 other workers - full time

Last edited:

audioblazer

Member Sponsor
May 13, 2010
765
204
1,605
Malaysia
Looked to me like lots of absorption panels on the side.

Correction . My earlier posting incorrect . Yes , a lot of absorption behind the wood & acrylic diffusers

Last edited:

audioblazer

Member Sponsor
May 13, 2010
765
204
1,605
Malaysia
I like his choice of gear. The Marten speakers are very, very good although I've mostly heard them with EAR electronics.

Electronic - Vitus Masterpiece Pre , Phono & 2 pieces of Vitus MPS
Digital - Metronome transport + Dac
analog - Raven Blacknight + Breuer ( waiting for Axiom tonearm) + Axiom Palladian
