S.A. Lab Erato

Roysen

New Member
Aug 6, 2011
728
2
0

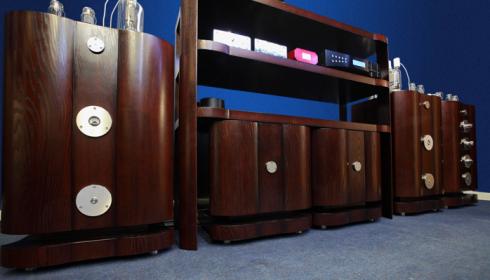

I wonder if these behomots are able to drive my Magico Q7. The set consits of a preamplifier, two mono amplifiers and two output transformers - all in their seperate cabinets.


Specifications
Erato preamplifier
Output voltage: 12V
Frequency response (max. power), 50Hz to 45'000Hz
Output impedance: 9?
Signal-to-noise ratio: 90dB
THD (100 Ohm): 0.03%
Input impedance:<100k?
Power consumption: 370 watts


Erato monaural amplifier
Output stage mode: Single-end class ?1/?2
Output power (4/8?1, 0.4% ): 75/42 watts
Output power (4/8?, ?2, 0.6%), 102/60 watts
Frequency response (max power), 10Hz to 40'000Hz -1dB
S/N ratio: 95dB
THD (half power): 0.08%
Output impedance: 0.5?
Sensitivity: 7.5V
Input impedance: 275?
Power consumption per channel: 950 watts


LL21

Well-Known Member
Dec 26, 2010
14,430
2,518
1,448
Drawing that much current, if designed well...does it mean the beast is able to produce tons of current to drive the Q7s? If so, I would have thought it is definitely worth investigating...
